2J74 Series

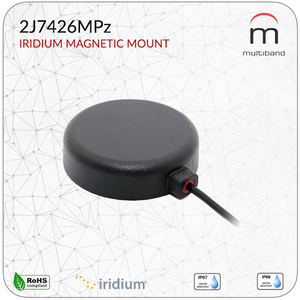

2J7426MPz Iridium Mag Mount Antenna
€45,00 EUR
Key Features: Iridium Magnetic Mount Antenna 1610 MHz - 1626 MHz Magnetic Mount Ground Plane Dependent 3M Cables SMA Male Connectors Dimensions: 54 x 14.7mm Certificates: IP67, IP69 https://cdn.shopify.com/s/files/1/0038/4463/6739/files/2J7426M_Iridium_Magnetic_Mount_Antenna.pdf?2641

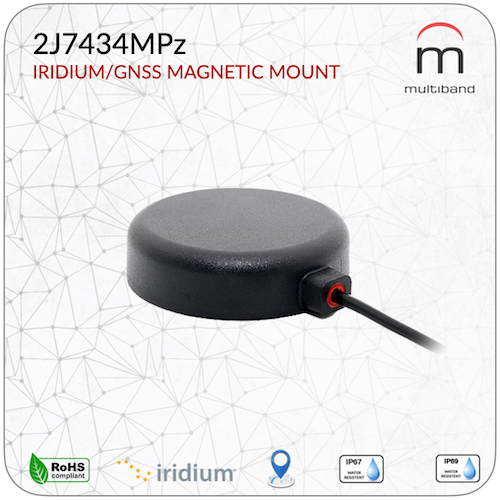

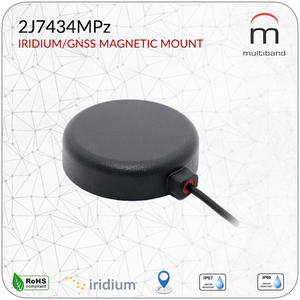

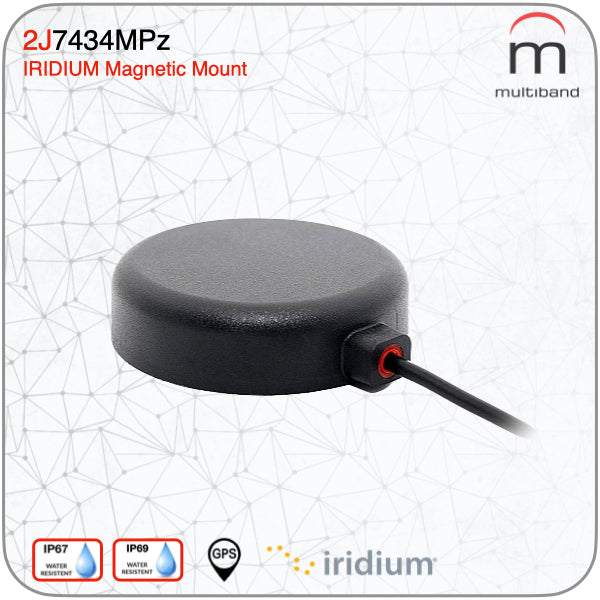

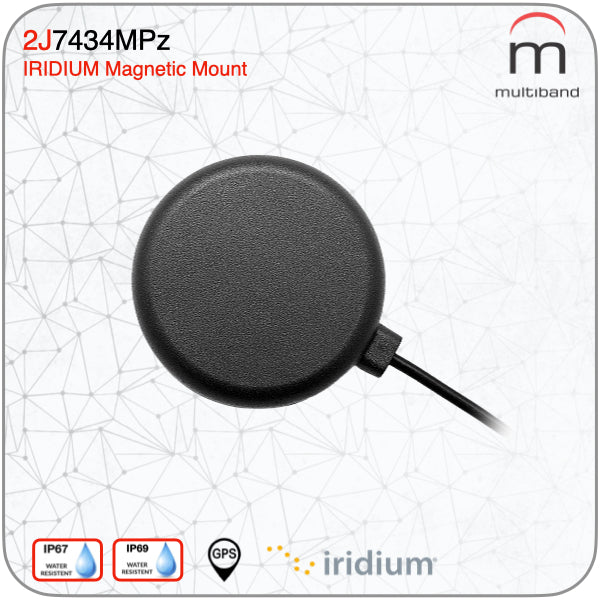

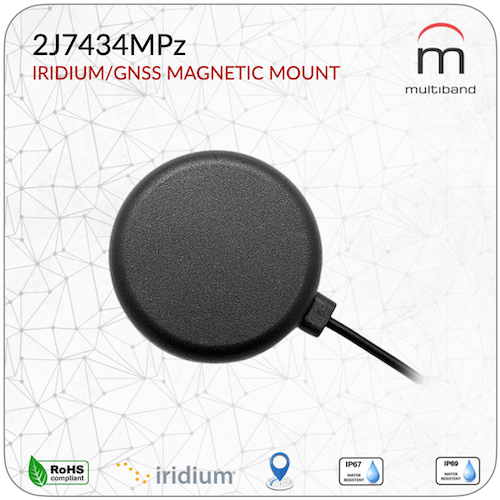

2J7434MPz GNSS and Iridium Mag Mount
€59,00 EUR
– Request A QuoteSpecifications Standards: GPS/QZSS/Galileo Bands (MHz): 1575, 1621 Frequency (MHz): 1575.42, 1616-1627 Return Loss (dB): ~-12.9, ~-15.8 VSWR: ~1.6:1, ~1.5:1 Efficiency (%): ~66.6, ~65.9 Peak Gain (dBi): ~2.5, ~2.6 Average Gain (dB): ~-1.8, ~-1.8 Impedance (Ohms): 50 Radiation Pattern: Hemispherical Polarization: RHCP Connector Type: SMA Male...
